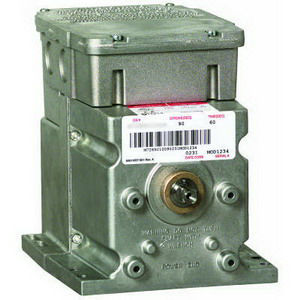

Honeywell Modutrol IV™ 90 Damper Actuator, Control Signal: Proportional, 135 Ohm, Fail Safe Mode: Spring Return, CW Rotation, 60 Inch-lb, 24 V, 50/60 Hz, 30 - 60 sec, 90 - 160 deg Stroke, Dual Ended Square Shaft Motor, 20 VA, 10 x 10 mm Shaft, Quick Connect, -40 to 150 deg F, Brown, 6-7/16 Inch H x 5-1/2 Inch W x 8-3/4 Inch D, Includes: NEMA 3 Wiring Box
- Integral junction box provides NEMA 3 weather protection
- Quick-connect terminals are standard--screw terminal adapter is available
- Adapter bracket for matching shaft height of older motors is available
- Integral auxiliary switches are available factory mounted, or can be field added
- All models have dual shafts (slotted and tapped on both ends)
- All models have auxiliary switch cams
- Fixed torque throughout the entire voltage range
Standard/Approvals: UL File: E4436 Guide: XAPX
Application: Electric
