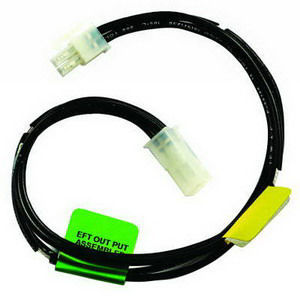

Honeywell Harness Bag Assembly Kit, For Use With: SmartValve™ SV9500 and SV9501 Series System Controls, Includes: Input Voltage Test Harness, Instruction Sheet and Pin Harness Assembly
The 396085 SmartValve™ input voltage test harness helps a user to confirm proper appliance control string operation in the field when installed between the appliance harness and the SmartValve™, the 396085 test harness is used to connect a voltmeter to the SmartValve™. This allows the user to monitor the input signals to the SmartValve™ controls. Proper SmartValve™ operation requires the appliance control string to supply the needed input signals during a call for heat.
