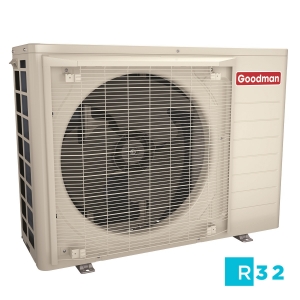

Goodman GZV7SA3610 3 Ton, Up to 19.0 SEER2, Up to 8.8 HSPF2 Heat Pump, R32, 35000 Max Cooling BtuH, 35000 Max Heating BtuH, Inverter Swing Compressor, 0.09HP ECM Condenser Fan Motor, ⅜" Liq. ⅞"Suct., 35A, 37"W x 12-5/8"D x 39"H, 67 dBA, 185 lbs.
GZV7S
Goodman SD - Series
High-Efficiency, Communicating, Variable-Speed, Inverter Driven Side Discharge
R-32 Split System Heat Pump
UP TO 19.0 SEER2
8.8 HSPF2
2, 3, 3.5, and 4 TONS
Capacity Maintenance (Rated 5°F/47°F) ≥ 70%
Quiet-mode - provides enhanced acoustical comfort, up to 3 different sound levels (as low as 45dBA)
Compatible with the Goodman® brand GTST Smart thermostat
Intelligent defrost mode
Slim style, small footprint
Quiet-mode – enhanced acoustical comfort
Blue Fin corrosion coating – helps keep coil clean
Standard Features
Blue Fin Corrosion Coating
The Goodman® brand SD-series unit features a 1000 hours salt spray rated coil as standard. This hydrophilic coating helps keep the coil clean.
Quiet Mode
This mode provides enhanced acoustical comfort. When activated (before sleep, etc.) homeowners will enjoy additional quiet within their space.
Intelligent Defrost Mode
The outdoor unit will enable this mode to help prevent frost/ice from building up in cold climate conditions. It will also help with longer heating operation time for additional comfort for occupants (compared to HVAC systems without this function).
Advantages
SD-series GTST Smart Thermostat System compatible
Slim style + small footprint =
• Flexibility in design and installation to meet demands of most projects.
• Install on pad or as a wall mount.
• Will support zero lot line and small patio/backyard spaces.
Quiet operation
Blue Fin Corrosion Coating
Energy Star Cold Climate® Certified
Product Limited Warranty
The compressor in in your Goodman brand GZV6S Heat Pump system is covered by a 10-Year Unit Replacement Limited Warranty* to the original purchaser. If the compressor fails in use at the original registered homeowner’s residence, a new condenser will be provided at no charge. The compressor is further covered by a Lifetime Compressor Limited Warranty. All remaining functional parts are covered by a 10-Year Parts Limited Warranty*. For a full description of all warranties applicable to this product, please download the warranty information.
At Goodman, we believe in American dependability. Units are designed, engineered and assembled in the U.S.A.
Year-round exceptional heating and cooling energy efficiency, improved temperature and humidity control, make this unit to be what we believe is one of our best heat pumps available.
Standard Features
• Variable-speed swing compressors
• Energy Star Cold Climate® Certified
• Quiet digitally commutated fan motor
• High-density compressor sound blanket
• Compatible with Goodman GTST Smart Thermostat and other Goodman communicating equipment
• Proprietary control algorithmic logic
• In communicating mode, only two low voltage wires to outdoor unit required
• Diagnostic indicator lights, seven-segment LED display, and fault code storage
• Proprietary Inside intelligence for diagnostics
• Quiet-mode - provides enhanced acoustical comfort, up to 3 different sound levels (as low as 45dBA)
• Field-selectable boost mode increases compressor speed during unusually high loads
• Field-installed bi-flow filter drier
• Coil and ambient temperature sensors
• Suction pressure transducer
• Sweat connection service valves with easy access to gauge ports
• AHRI Certified; ETL Listed
Cabinet Features
• Heavy-gauge galvanized steel cabinet with grille-style sound control side design
• Custom Ivory white powder-paint finish
• High corrosion (ZAM®), unpainted steel bottom frame and legs
• 500-hour salt-spray tested
• Wire fan discharge grille
• Top and side maintenance access
• When properly anchored, meets the 2023 Florida Building Code unit integrity requirements for hurricane-type winds (Anchor bracket kits available.)
