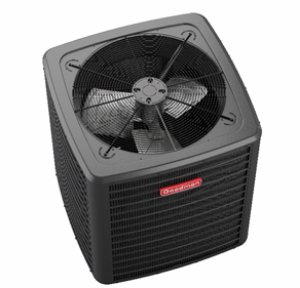

Goodman GSXN3N3010 2.5 Ton, 13.4 SEER2 Air Conditioner, Single Stage Rotary Compressor, 1/6HP PSC Condenser Fan Motor, ⅜" Liq. ¾" Suct., 25A 208/230-1, 29"W x 29"D x 32-1/2"H, 128 lbs.
GSXN3
Energy Efficient Split System Value
Up to 13.4 SEER2 Performance
1½ to 5 Tons
Energy-efficient compressors are designed to efficiently deliver indoor comfort, possibly saving on monthly energy costs.
A single-speed permanent split capacitor (PSC) condenser fan motor is designed to provide consistent airflow for optimum system performance.
Copper coil tubing with enhanced aluminum fins increases the area for heat absorption, providing outstanding, energy-efficient heat transfer performance.
Product Limited Warranty
The compressor and functional parts in your Goodman brand GSXN3 Air conditioner system are covered by a 10-Year Parts Limited Warranty*. For a full description of this warranty, please see your local Goodman dealer or click on the consumer brochure
At Goodman, we believe in American dependability. Units are designed, engineered and assembled in the U.S.A.
Standard Features
• Energy-Efficient Compressor
• Copper tube/ enhanced aluminum fin coil-5mm diameter
• Factory-installed filter drier
• Fully charged for 15’ of tubing length
• Service valves with sweat connections and easy-to-access gauge ports
• Contactor with lug connection
• Ground lug connection
• AHRI Certified
• ETL Listed
Cabinet Features
• Removable grille-style top design compliant with UL 60335-2-40
• Venturi for increased velocity of airflow
• Heavy-gauge galvanized-steel cabinet
• Attractive Architectural Gray powder paint finish with 500-hour salt-spray approval
• Steel louver coil guard
• Rust-resistant coated screws
• Single-panel access to controls with space provided for field-installed accessories
