Sorry - this product is no longer available

Grundfos UP26-96BF

.
Grundfos UPS26-99SFC

Replacement item

Grundfos UPS26-99SFC

SKU:
Manufacturer:
125988

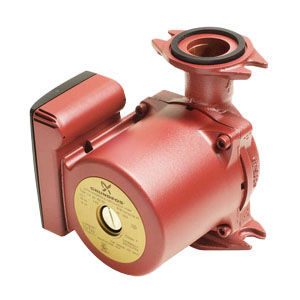

Grundfos UP26-96BF Circulator Pump, 28 gpm, GF 15/26, Flanged, 30 ft Maximum Head, 1/12 hp, 115v, 1.7 A, 145 psi, 1-Speed 52722336
SKU: 16762
Manufacturer part number: UP26-96BF
Manufacturer:

Grundfos


Please Sign In to display product price.

Grundfos UP Circulator Pump, 28 gpm, GF 15/26, Flanged, 30 ft Maximum Head, 1/12 hp, 115 V, 60 Hz, 1 Phase, 1.7 A, 145 psi Maximum, 2800 Rpm, 1 Speed, 2-Pole Motor, In-Line Mount, 35.6 - 230 deg F, Silicon Bronze, Red, 6-1/2 Inch L x 4-1/8 Inch W, Includes: (2) Gaskets and Flange Bolts

  • Multiple accessories for a variety of applications
  • Whisper-quiet operation for sound sensitive installations
  • Built-in motor protection for long life

Standard/Approvals: CSA Certified, UL Listed

Application: Hydronic Heating, Fan Coil Heating, Solar Heating and Radiant Heating Systems

Products specifications
Attribute nameAttribute value
Amperage Rating17 A
ColorRed
Connection TypeFlanged
Dimensions6-1/2 Inch L x 4-1/8 Inch W
Flow Rate28 gpm
ManufacturerGRUNDFOS
MaterialSilicon Bronze
Maximum Head30 ft
Maximum Pressure145 psi
Motor Type2-Pole
Mounting TypeIn-Line
Nominal SizeGF 15/26
Number of Speeds1
Power Rating1/12 hp
SeriesUP
Speed2800 Rpm
Temperature Rating35.6 - 230 deg F
Voltage Rating115 V, 60 Hz, 1 Phase
