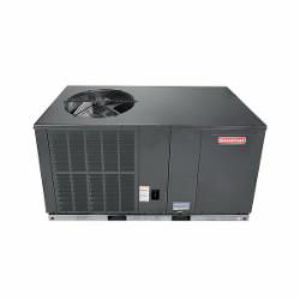

Goodman GPH14H Packaged Heat Pump, 2-Stage, 3 ton, 36000 BtuH Cooling, 32200 BtuH Heating, Horizontal, Operation Mode: Cooling and Heating, 11.5 EER, 14 SEER, HSPF: 8, 208/230 V, 60 Hz, 1 Phase, 40 A Fuse, 1200 cfm, R-410A, 5 Speed, Medium Chassis, (1) 25 x 25 x 1 Inch Filter, 78 dB, 1/2 hp 1050 Rpm Energy Efficient Motor, Copper Tube/Aluminum Fin Coil, Galvanized Steel Cabinet, Gray, 35 Inch H x 66 Inch W x 34 Inch D
The Goodman brand GPH Series Packaged Heat Pump offers energy efficiencies and operating sound levels that are among the best in the heating and cooling industry. Quality manufacturing as well as easy installation and maintenance make this unit one of the best values on the market.
- Energy-efficient compressor with internal relief valve
- Totally enclosed, permanently lubricated condenser fan motor
- Fully charged system
- Electric heat kit available as a field-installed option
- Heavy-gauge galvanized-steel cabinet with attractive architectural gray powder-paint finish
- Fully insulated blower compartment has convenient access panels
- Louvered condenser coil protection
- One footprint, three heights
- Evaporator motor: 10 Inch depth x 8 Inch width wheel, 1100 cfm fan-only
- Evaporator coil: 6.2 sq-ft face area, 3 rows deep, 14 fins per Inch, 0.068 Inch indoor metering device size, 3/4 Inch drain size (NPT), 125 oz refrigerant charge
- Condenser fan/coil: 1/4 hp, 1075 Rpm, 22 Inch diameter, 4 blades, 1.5 A (RLA), 3 A (LRA), 13.4 sq-ft face area, 1 row deep, 24 fins per Inch, 0.047 Inch outdoor metering device size
- Compressor: Scroll type, single stage, 16.7 A (RLA), 79 A (LRA)
- Electrical data: 1.4 A (RLA) outdoor fan
Standard/Approvals: AHRI Certified, ETL Listed
