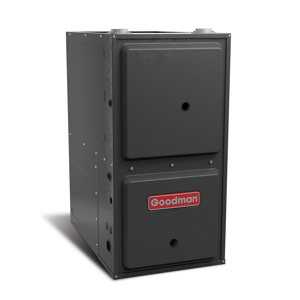

Goodman® GCVC96 Gas Furnace, 2-Stage, High Efficiency, 120000 BtuH Input, 115200 BtuH Output, 115 VAC, 60 Hz, 1 Phase, 96% AFUE, Downflow/Horizontal, 2000 cfm, Liquid Propane Convertible/Natural Gas, 2 Inch Flue, 20-1/8 x 21-5/8 Inch Supply Opening, 40 VA, Variable Speed Motor, Floor Mount, 34-1/2 Inch H x 21-5/8 Inch W x 28-3/4 Inch D, Stainless Steel
'
- Durable silicon nitride igniter
- AC gas valve provides quiet, economical heating
- Self-diagnostic control board with constant memory fault code history output to a dual 7-segment display
- Color-coded low voltage terminals with provisions for electronic air cleaner and humidifier
- Efficient and quiet variable speed ECM circulator motor gently ramps up or down according to heating or cooling demand
- Multiple continuous fan speed options offer quiet air circulation
- Auto comfort and enhanced dehumidification modes available
- All models comply with California low NOx emissions standards
- Designed for multi-position installation
- Certified for direct vent (2-pipe) or non-direct vent (1-pipe)
- Easy-to-install top venting with optional side venting
- Convenient left or right connection for gas and electrical service
- Cabinet air leakage (QLeak) ? 2%
- Heavy gauge steel cabinet with durable finish
- 1/2 Inch FPT gas service connection
- DOE AFUE based upon isolated combustion system
- 3 / 3.5 / 4 / 5 ton blower cooling capacity
- 20 A maximum over current protection
'
'
'
Standard/Approvals: AHRI Certified, CSA/Energy Star® Certified, ETL Listed
Application: Air Conditioning and Heating
