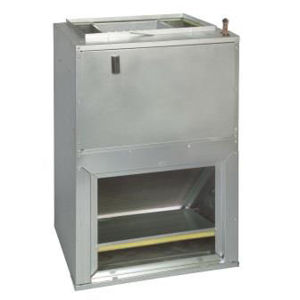

Goodman® AWUF Air Handler, 1-Piece, Unpainted, 2 ton, 760 cfm, 24000 BtuH Cooling, Dedicated Upflow, 3/8 Inch Liquid Line, 5/8 Inch Suction Line, 208/240 V, 60 Hz, 1 Phase, 30 A Fuse, 14 x 18 x 1 Inch Filter, Wall Mount, Steel, Galvanized, 36 Inch H x 20-3/16 Inch W x 16-1/8 Inch D, For Use With: R-410A and R-22 Refrigerants
- Equipped with a check flowrater for cooling only and heat pump operation
- Direct drive, multi-speed motor allows air volume variation for heating cooling
- Sequence controlled, rust-resistant nickel chromium heating elements of 3, 5, 8 and 10 kW
- Factory installed pull type disconnect
- Aluminum tubing coils
- Thermoplastic drain pan with bottom primary and secondary drain connections
- Built-in filter rack (filter included)
- Large chassis (2.5 and 3 ton units) - front return only
- Small chassis (1.5 and 2 ton units) - front or bottom return
- Wall hanging bracket provided
- 1/5 hp multi-speed PSC blower motor
- Electric energy source
Standard/Approvals: AHRI Certified, ETL Listed, ISO 9001
Application: Residential
