Goodman® AVPTC Air Handler, 1-Piece, Painted, 5 ton, 2025 cfm, 60000 BtuH Cooling, Downflow/Horizontal/Upflow, 3/8 Inch Liquid Line, 7/8 Inch Suction Line, 208/230 V, 1 Phase, 60 Hz, 15 A Fuse, 23.3125 x 11.3 Inch Supply Air Opening, 21.3125 x 19.5 Inch Return Air Opening, Multi-Position Mount, Aluminum Cabinet, Galvanized, 58 Inch L x 24.5 Inch W x 21 Inch D, For Use With: R-410A Refrigerant

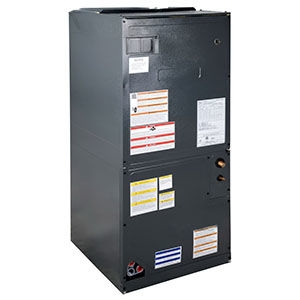

Goodman AMVT60DP1400 Air Handler, 5ton Nominal, Variable Speed, Communicating
Air Handler
The AMVT Multi-Position, Variable-Speed Air Handler
All-Aluminum Coil
ComfortBridge™ Technology
Factory mounted Expansion Valve (TXV)
SmartFrame™ Sub-Structure
Internal factory-installed thermal expansion valves for cooling and heat pump applications
Variable-speed ECM blower motor
Integrated communicating ComfortBridge™ Technology
Commissioning and diagnostics via on board Bluetooth with the CoolCloud™ phone and tablet application
Auto configuration of the airflow and tonnage in communicating mode
The Goodman AMVT60DP1400 air handler is a versatile unit designed for efficient air distribution in residential HVAC systems. Here are the technical specifications and features of this air handler:
1. Capacity and Size:
- Capacity: The AMVT60DP1400 is a 5.0-ton air handler, suitable for medium to large homes.
- Dimensions: It is a multi-position air handler, designed to fit various installation configurations.
2. Evaporator Coil:
- The unit features an all-aluminum evaporator coil. Aluminum coils are durable, efficient, and resistant to corrosion.
- The coil design ensures optimal heat exchange during cooling cycles.
3. Drain Pan:
- The air handler includes a thermoplastic drain pan. This pan collects condensate and ensures efficient drainage, preventing water buildup.
4. Fan Motor:
- Equipped with a variable-speed ECM blower motor, the AMVT60DP1400 allows precise control over airflow.
- Variable speed technology enhances comfort and energy efficiency by adjusting fan speed based on demand.
5. Expansion Valve (TXV):
- The unit features an internal factory-installed TXV for cooling and heat pump applications.
- The TXV regulates refrigerant flow, contributing to consistent temperature control and efficient operation.
6. ComfortBridge™ Technology:
- The AMVT60DP1400 integrates ComfortBridge™, a communication system that enhances performance and diagnostics.
- ComfortBridge™ ensures seamless coordination between components for optimal efficiency.
7. Constant CFM:
- The air handler provides constant CFM (cubic feet per minute) over a wide range of static pressure conditions.
- This feature ensures consistent airflow independent of the duct system.
8. Energy Efficiency:
- The AMVT series air handler is designed, engineered, and assembled in the USA.
- It combines energy efficiency, reliability, and ease of installation.
For complete warranty details, consult your local dealer or visit the Goodman website. The AMVT60DP1400 is an excellent choice for homeowners seeking reliable and efficient air handling solutions.
