Daikin OTERRA Single Zone 20 Series Wall-Mount
0.75 Ton to 2.0 Ton
Up to 21 SEER2 / Up to 10.2 HSPF2
Daikin OTERRA Wall Mount Systems provide energy efficiency and comfort control with an affordable, cost-saving solution. Available in both heat pump and cooling only models, these systems feature streamlined, wall mounted indoor units paired with quietly compact outdoor units. The flexible design blends discretely with any home décor and is ideal for single room enhancements, spaces requiring additional heating or cooling, and additions up to 1,600 square feet depending on the model selected.

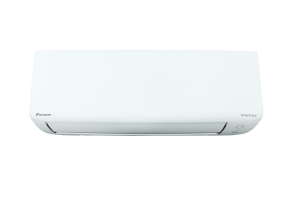

Daikin FTXF18AXVJU is a 1.5-ton wall-mounted heat pump system.
- Indoor Unit Specifications:
- Airflow Rate (cfm):
- Cooling Mode (M): 605 cfm
- Cooling Mode (L): 467 cfm
- Sound Levels (dBA):
- Low SL: 38 dBA
- Dimensions (H × W × D): 11-11/16 x 39-9/16 x 10-3/4 Inches
- Weight: 30.5 lbs
System Specifications
- Cooling Capacity: 18,100 Btu/hr
- Heating Capacity: 21,600 Btu/hr
- Voltage: 208-230 V, 60 Hz, 1 Phase
- Refrigerant Type: R32
- Color: White
- SEER2 (Seasonal Energy Efficiency Ratio): 21.0
- EER2 (Energy Efficiency Ratio): 12.0
- HSPF2 (Heating Seasonal Performance Factor): 9.6
Ideal solutions for:
Renovations, remodeling and new construction
A perfect alternative to noisy and inefficient window or through-the-wall air conditioner units
Sun rooms, basements, attics, garages, hot or cold rooms, and more
Rooms where floor space comes at a premium or is not available for other application
Ceiling void or attic does not allow for a viable duct run option
Cooling Only models are an excellent value for space not requiring heating
Features
Energy Efficient – Up to 21 SEER2, up ton 10.2 HSPF2, up to 12.5 EER2 – Variable-Speed Inverter Compressor
Cooling Range: 50° - 115° F (Extended operation to -4° - 115° F with facility setting and air adjustment grille)
Heating Range: 5° - 65° F
Indoor Sound Pressure as Low as 25 dB(A)
Outdoor Sound Pressure as Low as 46 dB(A)
Washable Air Filter
Program Dry Function
Eco+ Mode.
Titanium Apatite Photocatalytic Air Purifying Filter
Powerful Operation Mode
Backlit Wireless Remote Controller
Auto-Changeover (Heat Pump Only)
Auto-Fan Speed Control
Self Diagnostics with Digital Display
Auto-Restart after Power Failure
Anti-Corrosion Heat Exchanger Treatment
Automatic Defrosting (Heat Pump)
