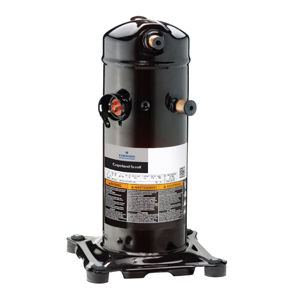

Copeland ZR72KCE-TF5-950

Copeland® ZR72KCE-TF5-950 Scroll Compressor, 6 ton, 72300 BtuH Cooling, 6420 W, R-407C, HFC, 11.25 EER, 18.85 A
SKU: 66341
Manufacturer part number: ZR72KCE-TF5-950
Manufacturers:

Emerson Electric , Copeland


Please Sign In to display product price.

Copeland® Scroll Compressor, 6 ton, 72300 BtuH Cooling, 6420 W, R-407C, HFC, 11.25 EER, 200/230 V, 60 Hz, 3 Phase, 18.85 A, 7/8 Inch Stub Suction Line, 1/2 Inch Stub Discharge Line, 75 dBA, 7.5 Inch L x 7.5 Inch W x 18 Inch H Mount, 9.69 Inch L x 9.69 Inch W x 17.75 Inch H, Includes: T-Box Service

  • 3500 Rpm
  • BtuH ratings are based on 45 deg F evaporating temperature, 130 deg F condensing temperature, 65 deg F return gas temperature and 95 deg F liquid temperature
  • 56 oz oil recharge
  • 60 oz initial oil charge
  • 1080 lb/hr mass flow



Standard/Approvals: UL Listed

Application: Air Conditioning



Products specifications
Attribute nameAttribute value
Amperage Rating18.85 A
Cooling Capacity72300 BtuH
Dimensions9.69 Inch L x 9.69 Inch W x 17.75 Inch H
Discharge Line Size1/2 Inch Stub
EER Rating11.25
ManufacturerEmerson Electric
Mounting Type7.5 Inch L x 7.5 Inch W x 18 Inch H
Nominal Capacity6 ton
Power Rating6420 W
Refrigerant TypeR-407C, HFC
Sound Level75 dBA
Suction Line Size7/8 Inch Stub
Voltage Rating200/230 V, 60 Hz, 3 Phase
