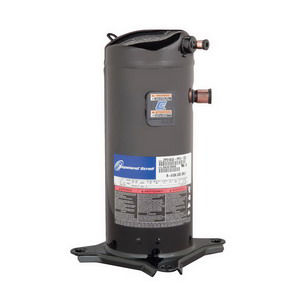

Copeland® ZR Scroll Compressor, High Temperature, 3 ton, 38000 BtuH Cooling, 3400 W, R-22, HCFC, 11.2 EER, 460 V, 60 Hz, 3 Phase, 5.15 A, 7/8 Inch Stub Suction Line, 1/2 Inch Stub Discharge Line, POE Compressor Oil, 73 dBA, 7.5 Inch L x 7.5 Inch W x 17.17 Inch H Mount, 9.69 Inch L x 9.69 Inch W x 19.94 Inch H, Includes: Mounting Hardware
- 3500 Rpm
- BtuH ratings are based on 45 deg F evaporating temperature, 130 deg F condensing temperature, 65 deg F return gas temperature and 95 deg F liquid temperature
- 34 oz oil recharge
- 42 oz initial oil charge
- 556 lb/hr mass flow at 45 deg F
Standard/Approvals: UL SA-2337
Application: Air Conditioning
