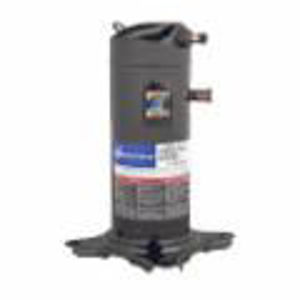

Copeland Scroll Compressor, 3.5 ton, 37500 BtuH Cooling, 3 hp, R-410A, 10.1 EER, 208 - 230 V, 60 Hz, 1 Phase, 17 A, 7/8 Inch Stub Suction Line, 1/2 Inch Stub Discharge Line, Start Capacitor: 88-106/330, Run Capacitor: 014-0064-25, POE Compressor Oil, 68 dBA, 7-1/2 Inch L x 7-1/2 Inch W x 17.17 Inch H Mount, 9.56 Inch L x 9.56 Inch W x 16.94 Inch H, Includes: Mounting Hardware
- 1-1/2 through 30 ton models available
- 22.1 max RLA and 109 LRA
- 0.552 ohms run resistance
- 1.215 ohms start resistance
- 130 deg F condensing temperature
- 65 deg F return gas
- 95 deg F liquid
- Molded plug connection
Application: Air Conditioning
