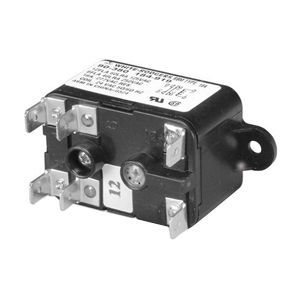

White-Rodgers 90-364

White-Rodgers™ 90-364 Heavy Duty General Purpose Fan Relay, 208/240 V, 50/60 Hz, 12.5 mA, 240 V 6050 Ohm, SPST
SKU: 81322
Manufacturer part number: 90-364
Manufacturer:

Emerson Electric


Please Sign In to display product price.
White-Rodgers™ Fan Relay, Heavy Duty, General Purpose, 208/240 V, 50/60 Hz, 12.5 mA, 240 V Coil, 12.5 mA, 3 VA Sealed, 4 VA Inrush Coil, 6050 Ohm Coil, SPST, 1 NC/1 NO, 1/4 Inch Quick Connect Terminal

  • Compact, totally enclosed design
  • Quiet, reliable and economical
  • Continuous duty cycle

Standard/Approvals: CSA Certified, UL Listed

Application: Cooling, Heating and General Switching

Products specifications
Attribute nameAttribute value
Amperage Rating12.5 mA
Coil Current12.5 mA, 3 VA Sealed, 4 VA Inrush
Coil Resistance6050 Ohm
Coil Voltage240 V
Contact ConfigurationSPST
Contact Form1 NC/1 NO
ManufacturerEmerson Electric
Terminal Type1/4 Inch Quick Connect
TypeHeavy Duty, General Purpose
Voltage Rating208/240 V, 50/60 Hz
