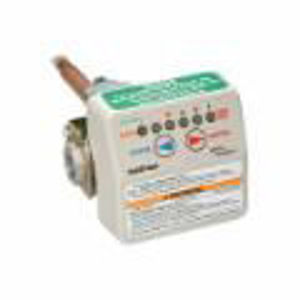

White-Rodgers 37E73A-927

White-Rodgers 37E73A-927 Water Heater Thermostat Control, 120 VAC, 60 Hz, 0.2 A, Natural Gas, 20 sec Warm Up
SKU: 85837
Manufacturer part number: 37E73A-927
Manufacturer:

Emerson Electric


Please Sign In to display product price.

White-Rodgers Water Heater Thermostat Control, 120 VAC, 60 Hz, 0.2 A, Natural Gas, 20 sec Warm Up, 5 sec Prepurge, Retries: 2, 1/2 Inch NPT Inlet, 1/2 Inch Flared Outlet, Horizontal/Vertical Mount
'

The 37E73A series INTELLI-VENTTM control is a combination gas valve, ignition control, and thermostat for use on Power Vented water heaters. The microcomputer in the control supervises the ignition sequence and timings for the water heater, and provides diagnostic codes in case of system malfunction. The control provides direct burner ignition using the White-Rodgers Silicon Nitride Igniter (the 21D64-2). The control uses the INTELLI-VENTTM technology to greatly extend the igniters life.

  • 30000 - 150000 BtuH regulation
  • 1/2 psi max
  • 5 sec post-purge
  • 32 - 160 deg F

'

'

'

Standard/Approvals: CSA Certified

Products specifications
Attribute nameAttribute value
Amperage Rating0.2 A
Control Voltage120 VAC, 60 Hz
Gas TypeNatural Gas
Inlet Size1/2 Inch NPT
ManufacturerEmerson Electric
Mounting TypeHorizontal/Vertical
Outlet Size1/2 Inch Flared
Prepurge Time5 sec
Retries2
Warm Up Time20 sec
