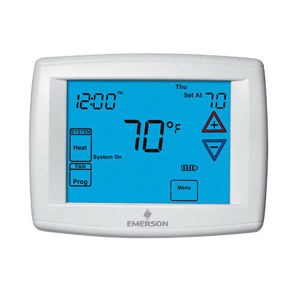

White-Rodgers™ Blue™ Commercial Programmable Thermostat, Digital, Low Voltage, Touchscreen, 45 - 99 deg F, 0.6 deg F Heat, 1.2 deg F Cool Differential, 4 Stages Heat, 2 Stages Cool, Temperature Settings Per Day: 2, 0, Programs Per Week: 5-1-1, 7, Terminal Designations: RC, RH, C, W/E, W2, Y, Y2, G, O/B, 6, L, A1, + S –, System Switching: Auto-Heat-Cool-Off-Emergency, Fan Switching: Auto-On-Program-Circulate, Backlit Display, 20/30 VAC, Battery/Hardwired/Power Stealing, Horizontal Mount, White, 4.6 Inch L x 5.9 Inch W x 1.2 Inch D, Includes: 2 AA Batteries
- Optional minimum and maximum temperature configurable
- Auto changeover
- Permanent program retention during power loss, no batteries needed
- Indefinite setpoint hold or programmable timed hold up to 8 hours
- Air filter change indicator
- Simple “set-up” menu to activate optional features
- Programmed temporary temperature override 2 hr or until next program period
- 30 - 75 W, 1.5 - 2.5 A
Standard/Approvals: Energy Star Certified
Application: Single Stage and Multi-Stage Heat Pumps
