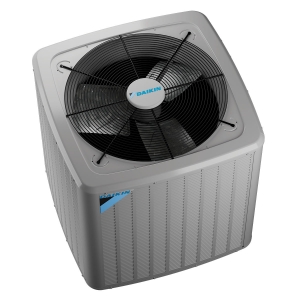

Daikin DZ4SEA3630 3 Ton, Light Commercial, 14.3 SEER2 Heat Pump, Single Stage Scroll Compressor, 1/6HP PSC Condenser Fan Motor, ⅜" Liq. ⅞" Suct., 25A 208/230V-3Ph, 35-1/2"W x 35-1/2"D x 39-5/8"H, 233 lbs.
DZ4SEA | DZ14 | DZ14XA
Commercial Heat Pumps
In every Daikin commercial heat pump system, our high-performance, high-efficiency compressors operate in tandem with our high-efficiency coil design. This innovative system offers one of the best levels of reliability, durability and efficiency we offer in our commercial packaged heat pumps. The Daikin DZ4SEA, DZ14 and DZ14XA commercial heat pumps feature a powder-paint finish over heavy-gauge galvanized steel. This provides premium durability and improved UV protection. The attractive louvered metal guard protects the coil from damage and strengthens the unit. The base pan is elevated to provide excellent water drainage and helps keep the coil away from debris that can collect inside the unit.
Standard Features
» Designed for ground-level or rooftop mount
» An energy-efficient compressor with an internal relief valve
» A louvered cabinet made of heavy-gauge galvanized steel that protects the coil
» A factory-installed in-line filter drier
» Brass liquid and suction line service valves
» A high-efficiency condenser coil made of corrugated aluminum fins and rifled refrigeration-grade copper tubing
» Refrigerant accumulator
DZ14 | DZ4SEA Unit Features
» Energy efficient compressor
» Quiet operating top discharge
» High-efficiency copper tube / aluminum fin coil
» Brass liquid and suction service valves
» High- and low-pressure switches
» Factory-installed filter drier
» Units meet the performance outlined in Table 6.8.1-2 of ASHRAE Standard 90.1-2016
» AHRI Certified; ETL Listed
» Innovative sound control top design
» Steel louver coil guard protects the coil from damage and adds strength to unit
» Bottom pan rails elevate unit above slab
» Heavy-gauge galvanized-steel cabinet
» Attractive Nickel Gray powder-paint finish
Cabinet Features
• Innovative sound control top design
• Steel louver coil guard
• Heavy-gauge galvanized-steel cabinet
• Attractive Nickel Gray powder-paint finish
• Top and side maintenance access
• Service ports and controls are accessible while unit is operating
The warranty on all parts lasts for a period of up to 5 YEARS after the installation date.
