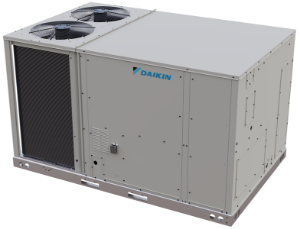

DFG0903DH00001S Daikin Package Unit, Commercial, Gas/Electric, 86000 BtuH Cooling, 225000 BtuH Heating, 2-Stg Heating, 14.8 IEER, 11.2 EER, Multi-Pos (Horz/Down), R10A,2.4 HP, 82.6 dB, Single Stage Scroll (2) Compressor, 208/230-3-60, 50/50A, 60-3/8 Inch W x 93-3/4 Inch D x 54-5/8 Inch H, 1140 lbs.
DFG Series 7.5 - 12.5 Tons - Packaged Gas/Electric
The DFG Packaged Gas/Electric units are built to perform, with features and options that provide lower installation and operating costs, superior indoor air quality, quiet operation and longevity.
Up to 16 IEER / 12 EER
15.2 IEER / 11.4 EER
R-410A Standard Efficiency
Features and Benefits
Installation
Daikin Packaged units are designed with fast and easy installation in mind and are ideal for both new construction and retrofit projects. Our packaged rooftop units are built to be a direct replacement for most rooftop units in the field without the need of a curb adapter.
Cabinet Construction
Daikin packaged rooftop units are made with high quality galvanized steel with a powder-paint finish to provide higher corrosion resistance.
Compressor
High performance, low noise scroll compressors to match the required total load.
Supply Fan
Indoor forward curved fan, paired with direct-drive motor, provide for easy airflow control.
Coils
All units use large face area outdoor coils. These coils are constructed with microchannel technology for high operating efficiencies.
Controls and Wiring
Packaged rooftop units come equipped with a well-organized, large, easy to use weatherproof internal control box with easy access, for a better user experience.
Filtration
Unit provides a draw-through filter section as standard for better air quality and long lasting component maintenance.
Gas Heat
Wide range of sizes for gas fired heating, w/ LP options.
Electrical
Units are completely wired and tested at the factory to provide faster commissioning and start-up.
Warranty
The heat exchanger in this Daikin brand packaged unit is covered by a 20-Year Warranty and all functional parts are covered by a 5-Year Parts Warranty. For a full description of the warranty, please download the product warranty document.
