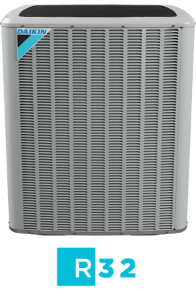

Daikin DC3SEA6040 5 Ton, 55500 Btuh, 13.4 SEER2 Air Conditioner, Single Stage Scroll Compressor, 1/4HP PSC Condenser Fan Motor, ⅜" Liq. ⅞" Suct., 15A, 460V-3Ph, 35-1/2"W x 35-1/2"D x 39-1/2"H, 72 dBA, 239 lbs.
DC3SEA Commercial
3, 4, & 5-Ton, Three-Phase
Split System Air Conditioner
Nominal Cooling Capacity: 36,000 - 60,000 BTU/h
Standard Features
• High efficiency scroll compressor
• Advanced Copeland® CoreSense™ Technology
• Fully charged for 15’ of tubing length
• Copper tube/ enhanced aluminum fin coil 5mm diameter
• Factory-installed filter drier
• Sweat connection service valves with easy access to gauge ports
• Enclosed contactor
• High-pressure switch
• Ground lug connection
• Capacitors with extended life
• AHRI Certified
• ETL Listed
Cabinet Features
• Removable grille-style top design compliant with UL 60335-2-40
• Venturi for increased velocity of airflow
• Custom Nickel Gray powder- paint finish with 500- hour salt- spray approval
• Steel louver coil guard with rust-resistant screws
• Wire fan discharge grille
• Steel louver coil guard
• Rust-resistant screws
• Top and side maintenance access
• Single-panel access to controls with space provided for field-installed accessories
This unit is backed by a 5-Year Parts Warranty. For a full description of the warranty, please download the product warranty document. ADDITIONAL INFORMATION: Before purchasing this appliance, read important information about its estimated annual energy consumption, yearly operating cost, or energy efficiency rating that is available from your retailer.
