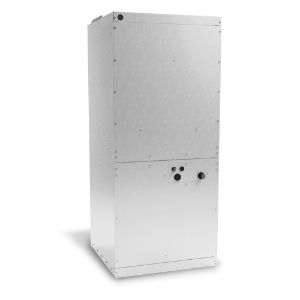

Daikin DAX09043 7.5 Ton, Light Commercial Air Handler, R410A, 1 HP Direct Drive Blower Motor, 3/8" Liq. 1-1/8" Suct. (Dual Refrigerant Lines) 48-1/8"W x 24"D x 60-1/2"H, 430 lbs.
The Daikin DAX Multi-Speed, Multi-Position Air Handlers are suitable for upflow or left side horizontal installations to accompany your 7½ and 10-ton split-system units. These unit feature a fully insulated fiberglass blanket for quiet, efficient operation.
Uses AHKD Model electric heat kits
DESIGNED FOR EXCEPTIONAL DURABILITY, ENERGY EFFICIENCY, AND OUTSTANDING PERFORMANCE.
» Circuited for use with one (1) 7½-ton or one (1) 10-ton cooling-only or heat pump system. Also circuited for use with two (2) 4-ton or two (2) 5-ton cooling-only units
» Copper tube/aluminum fin coils
» TXV control; 7½-ton unit has one (2) thermal expansion valves; 10-ton unit has two (2) thermal expansion valves
» Draw-thru centrifugal blower is direct- driven for quiet, efficient operation» Heavy-gauge, reinforced, galvanized-steel cabinet
» Fully insulated with fiberglass blanket
» Horizontal and vertical condensate pans
» Built-in filter rack (2" filter included)
» Entry on top of panel for both low and high voltages
» Removable access panels make servicing of unit faster and easier
The warranty on all parts lasts for a period of up to 5 YEARS after the installation date.
