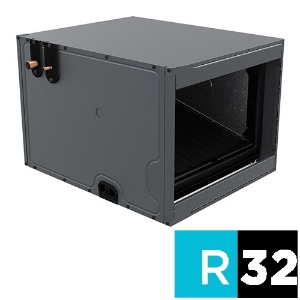

CHPTA2426B3 Evaporator Coil, 1.5-2 tons, Horizontal, R32, TXV

CHPTA2426B3 Evaporator Coil, 1.5-2 tons, Horizontal, R-32A TXV, 26" Wide 17.5" Tall
SKU: GMN-CHPTA2426B3
Manufacturer part number: CHPTA2426B3
Manufacturer:

Goodman Manufacturing


Please Sign In to display product price.

CHPTA2426B3 Evaporator Coil, 1.5-2 tons, Horizontal, R-32A TXV, 26" Wide 17.5" Tall, 3/8" Liq. 7/8" Suct., 55 lbs

CHPTA Painted Horizontal “A” Coils

Standard Features
• All-Aluminum evaporator coil
• Optimized for use with R-32 refrigerant including circuits and manifolds
• R-32 sensor designed for the life span of the coil
• CHPTA models feature factory installed thermal expansion valves for cooling and heat pump applications
• Standardized copper suction tube stub length
• 21" depth for easier attic access
• CHPTA models include a single front access panel
• Foil-faced insulation covers the internal casing to reduce cabinet condensation
• Galvanized, leather grain-embossed finish
• Rust resistant, thermoplastic drain pans featuring a low water-retention design
• DecaBDE-free thermoplastic drain pan with secondary drain connections
• Drain pan rails designed to remove and reposition coils with ease without compromising structural integrity
• UV-resistant drain pan
• AHRI certified; ETL listed

R-32 coils have been equipped with a sensor in the airflow that will interrupt the cooling and heating demand and keep the blower running in the event a leak is detected. It is imperative that an R-32 indoor coil be appropriately matched with an R-32 outdoor unit.

Product Limited Warranty
The coil and functional parts in your Goodman brand CHPTA evaporator coil are covered by a 10-Year Parts Limited Warranty*. For a full description of this warranty, please see your local Goodman dealer or click on the consumer brochure.

Products specifications
Attribute nameAttribute value
Coil ConfigurationCased Horizontal
Expansion Device - Refrigerant ControlThermal Expansion Valve - TXV
Tubing/Fin ConstructionRifled aluminum tubing, enhanced aluminum fins
Height17-1/2 Inch
Liquid Line Size3/8 Inch
Nominal Capacity1.5 - 2 ton
Refrigerant TypeR-32
Suction Line Size7/8 Inch
Width26 Inch
