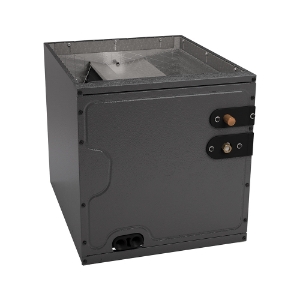

CAPFA2422A6 Evaporator Coil, 2 tons, Cased Upflow/Downflow, R-22 or R-410A Flowrator, 14" Wide 22" Tall, ⅜” Liq. ¾" Suct., 0.059 Piston, 41 lbs
CAPFA Coils
Cased, Painted Upflow/Downflow, Evaporator Coil
Standard Features
• All-Aluminum evaporator coil
• 7mm aluminum tubing
• Optimized for use with R-410A refrigerant
• Some models suitable for use with R-410A or R-22 refrigerant
• Check flowrator for cooling and heat pump applications
• Vertical and horizontal models available
• 21" depth for easier attic access
• Single front access panel
• Foil-faced insulation covers the internal casing to reduce cabinet condensation
• Galvanized, leather grain-embossed finish
• Rust resistant, thermoplastic drain pans featuring a low water-retention design
• DecaBDE-free thermoplastic drain pan with secondary drain connections
• UV-resistant drain pan
• AHRI certified; ETL listed
