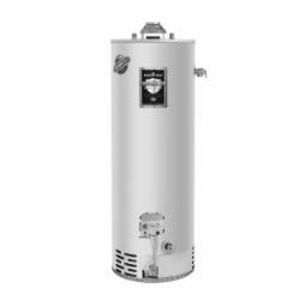

Bradford White RG Gas Water Heater, Atmospheric Vent, 40000 BtuH Heating, Natural Gas, 1/2 Inch Gas Connection, 40 gal Tank, Piezo Ignition, 4 Inch Draft Hood, 0.80 Recovery, 0.62 Energy Efficient, 3/4 Inch NPT Water Connection, 1600 deg F, Steel, Vitraglas, 60-1/8 Inch H x 20 Inch W, Includes: Temperature and Pressure Relief Valve
- Intelligent gas control with proven millivolt powered technology and built-in piezo igniter
- A standard, off the shelf thermopile converts heat energy from the pilot flame into electrical energy to operate the gas valve and microprocessor
- No need for external electricity
- Enhanced performance - proprietary algorithms provide enhanced first hour delivery ratings and tighter temperature differentials
- Advanced temperature control system - microprocessor constantly monitors and controls burner operation to maintain consistent and accurate water temperature levels
- Intelligent diagnostics - an exclusive green LED light prompts the installer during start-up and provides ten different diagnostic codes to assist in troubleshooting
- Pilot on indication - flashing green LED provides positive indication that pilot is on
- Separate immersed thermowell - high-strength advanced polymer composite thermowell provides isolation between electric temperature sensor and surrounding water. No need to drain the tank when removing gas valve
- Advanced ScreenLok technology flame arrestor design - flame arrestor is designed to prevent ignition of flammable vapor outside of the water heater
- Resettable thermal switch - proven and reliable bimetallic switch prevents burner and pilot operation in case of ongoing flammable vapor burn inside of the combustion chamber or restricted air flow
- Maintenance-free - no regular cleaning of air inlet openings or flame arrestor is required under normal conditions
- Sight window - offers a view into the combustion chamber to observe the operation of the pilot and burner
- Factory-installed Hydrojet total performance system - cold water inlet sediment reducing device helps prevent sediment build-up in tank. Increases first hour delivery of hot water while minimizing temperature build-up in tank
- Vitraglas lining - Bradford White tanks are lined with an exclusively engineered enamel formula that provides superior tank protection from the highly corrosive effects of hot water
- Non-CFC foam insulation - covers the sides and top of tank, reducing the amount of heat loss. This results in less energy consumption, improved operation efficiencies, and jacket rigidity
- Pedestal base
- Factory-installed heat traps
- Protective magnesium anode rod
- Low restriction brass drain valve - durable tamper-proof design
Standard/Approvals: CSA Certified, NAECA Compliant, ASHRAE 90.1b Certified, C.E.C. Listed, ANSI Z-21.10.1
Application: Plumbing and Residential
