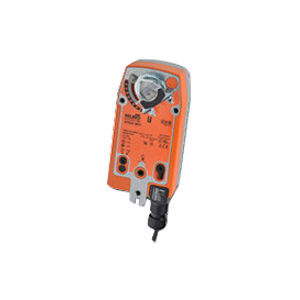

Belimo® AFB24-S Damper Actuator, Control Signal: Proportional, 2/10 VDC, Fail Safe Mode: Spring Return, 95 deg Rotation, 133 Inch-lb, 24 VAC/VDC, 150 sec Motor, <20 sec Spring, Brushless DC Motor, 6 W Running, 2 W Holding, (2) 3 ft, 18 ga Appliance Cable with 1/2 Inch Conduit, -22 to 122 deg F, Metal/Plastic, Zinc Plated
- Manual override
- Direction of rotation: reversible with CW/CCW mounting
- Control input: on/off
- Power rating: 10 VA
Standard/Approvals: cULus Listed, UL60730-1A/-2-14, CAN/CSA E60730-1:02, ISO 9001
Application: HVAC Systems
