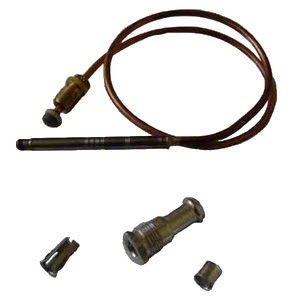

Super Slim Jim K19AT-18H

Super Slim Jim™ K Series Universal Thermocouple, 18 Inch Probe, 1300 deg F, 25 - 35 mV Open Circuit, 8 mV
SKU: 10753
Manufacturer part number: K19AT-18H
Manufacturer:

BASO Gas Products


Please Sign In to display product price.
Super Slim Jim™ K Series Thermocouple, Universal, 18 Inch Probe Length, 1300 deg F, 25 - 35 mV Open Circuit, 8 mV, Brass/Copper, Includes: Adapter, Adapter Bushing and Snap Ring

  • Heavy duty construction which promotes long life
  • High performance inner and outer element material that provides maximum output capacity
  • Built-in junction block which allows for the addition of a high limit switch in the thermocouple circuit
  • Nickel plating provides high ambient and corrosive atmosphere protection
  • Natural, liquefied petroleum gas type

Standard/Approvals: ANSI Z21-20-1995 Certified, AGA 20-35C-TC

Application: Standing Pilot Ignition Systems

Products specifications
Attribute nameAttribute value
ManufacturerBASO Gas Products
MaterialBrass/Copper
Open Circuit Output25 - 35 mV
Probe Length18 Inch
SeriesK Series
Temperature Range1300 deg F
TypeUniversal
Voltage Rating8 mV
