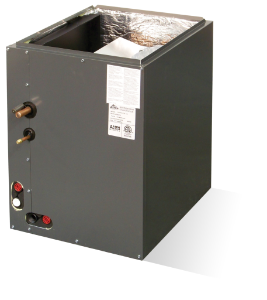

Aspen CE36A3G-175R-122 Cased Evaporator Coil, Multi-Position, 3 ton, 17.5 Inch Wide, 23 Inch Tall, R-22 or R-410A Check Flowrator, Size: 0.074 R-22,0.068 R-410A, Dual Condensate Drains, Flanged Top Duct Opening, Right Hand Connections, ⅜" Liq. ¾" Suct., 52 lbs.
CE Series Cased Multi-Position Coil Specifications
STANDARD SPECIFICATIONS
• Rifled copper tubing, enhanced aluminum fins.
• Immersion-tested at 500 psi, then nitrogen-pressurized and sealed.
• Left- or right-hand refrigerant and plumbing connections.
• Liquid line - 3/8” ODS, suction line - 3/4” ODS on 1-1/2- 3 ton & 7/8” ODS on 3-1/2 - 5 ton.
• Externally mounted flowrater body with Schrader valve for hiss-testing.
• Heavy duty plastic upflow drains pans on most models, powder coated galvanized steel horizontal drain pans standard on all.
• Embossed galvanized cabinets standard. Cabinets feature furnace connectors (patent pending).
• Upflow, horizontal right, or horizontal left without field modification. Downflow applications require plate kit, included.
• Split access doors in front for easy service.
• Fully insulated cabinets with faced insulation.
• Ten-year limited warranty.
• AHRI certifiable with all brands of A/C and heat pump systems.
• ETL listed for use with R22 and R410a when proper metering device is used.
