Goodman® AMVT Air Handler, 1-Piece, Painted, 3.5 ton, 42000 BtuH Cooling, Downflow/Horizontal/Upflow, 3/8 Inch Liquid Line, 7/8 Inch Suction Line, 208/230 V, 1 Phase, 60 Hz, 15 A Fuse, 19.9375 x 11.3 Inch Supply Air Opening, 17.6875 x 19.5 Inch Return Air Opening, Multi-Position Mount, Aluminum Cabinet, Galvanized, 49 Inch L x 21 Inch W x 21 Inch D, For Use With: R-410A Refrigerant
Air Handler
The AMVT Multi-Position, Variable-Speed Air Handler
All-Aluminum Coil
ComfortBridge™ Technology
Factory mounted Expansion Valve (TXV)
SmartFrame™ Sub-Structure
Internal factory-installed thermal expansion valves for cooling and heat pump applications
Variable-speed ECM blower motor
Integrated communicating ComfortBridge™ Technology
Commissioning and diagnostics via on board Bluetooth with the CoolCloud™ phone and tablet application
Auto configuration of the airflow and tonnage in communicating mode

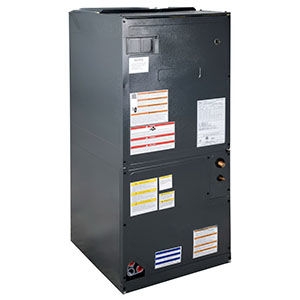

The Goodman AMVT42CP1400 air handler is designed with an energy-saving, direct drive ECM blower motor and a durable cabinet with multiple features that provide easy installation. Let's delve into the technical details:
1. Capacity and Size:
- Capacity: The AMVT42CP1400 is a 3-ton air handler, suitable for medium-sized homes.
- Dimensions: It is a multi-positional air handler, allowing installation in upflow, downflow, or horizontal orientations.
2. Evaporator Coil:
- The unit features an all-aluminum evaporator coil. Aluminum coils are durable, efficient, and resistant to corrosion.
- The coil design ensures optimal heat exchange during cooling cycles.
3. Drain Pan:
- The air handler includes a thermoplastic drain pan. This pan collects condensate and ensures efficient drainage, preventing water buildup.
4. Fan Motor:
- Equipped with a variable-speed ECM blower motor, the AMVT42CP1400 allows precise control over airflow.
- Variable speed technology enhances comfort and energy efficiency by adjusting fan speed based on demand.
5. Expansion Valve (TXV):
- The unit features an internal factory-installed TXV for cooling and heat pump applications.
- The TXV regulates refrigerant flow, contributing to consistent temperature control and efficient operation.
6. Durability and Reliability:
- The AMVT42CP1400 has a heavy-gauge cabinet structure and an all-aluminum evaporator to prevent general wear-and-tear.
- It's a reliable solution for your home's HVAC system.
7. Installation and Maintenance:
- Utilizes SmartFrame technology in its sub-structure for easy installation.
- Special mounting features allow installation in various orientations.
- Two front panels provide access for maintenance.
8. Enhanced Comfort:
- The AMVT42CP1400 lives up to Goodman's comfort expectations with its multi-speed ECM motor.
- Provides precise and efficient temperature control.
9. Warranty:
- Comes with Goodman's standard 10-year parts warranty when registered online through the manufacturer.
- Installation must comply with local and state codes, and the unit must be paired with an approved condenser.
In summary, the Goodman AMVT42CP1400 air handler combines efficiency, reliability, and comfort, making it an excellent choice for homeowners seeking a cost-effective solution for their HVAC needs.
