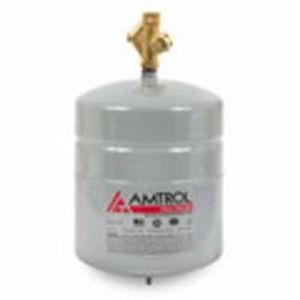

Fill-Trol FT-109

Fill-Trol® FT-109 Standard Expansion Tank with Fill Valve, 2 gal, 100 psi, 1/2 Inch NPFT, 12 psi Precharge, 240 deg F
SKU: 17108
Manufacturer part number: FT-109
GTIN: 004203111419
Manufacturer:

Amtrol


Please Sign In to display product price.

Fill-Trol® Expansion Tank FT-109, Standard, 2 gal, 1/2 Inch NPFT, 12 psi Precharge, 100 psi Working, 240 deg F, Butyl/EPDM Diaphragm, Steel Tank, 8 Inch W x 14-3/4 Inch H
'

  • Provides accurate system make up
  • Eliminates need for a separate, automatic fill valve
  • Fully adjustable up to a maximum working pressure of 100 psig
  • Factory pre-charged to 12 psig, tank pressure controls system fill
  • 0.9 gal acceptance volume

'

'

'

Standard/Approvals: NSF 61, IAPMO Certified, SBCCI Listed

Application: Heating

Products specifications
Attribute nameAttribute value
Connection Type1/2 Inch NPFT
Diaphragm TypeButyl/EPDM
Dimensions8 Inch W x 14-3/4 Inch H
ManufacturerAmtrol
MaterialSteel Tank
Nominal Capacity2 gal
Precharge Pressure12 psi
Temperature Rating240 deg F
TypeStandard
