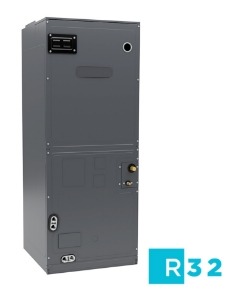

Goodman AHVE48CP1300 4 Ton, 230V/1Ph Air Handler, R-32 RDS Incl., ¾HP Blower, ⅜" Liq. ⅞" Suct., 15A, 148 lbs., 21"W x 21"D x 58"H
AHVE R-32
Multi-Position, Variable-Speed Air Handler
ECM-Based Air Handler with Internal EEV, Communicating
For side discharge units
1½ to 5 Tons
Product Limited Warranty
The functional parts in your AHVE air handler are covered by a 10-Year Parts Limited Warranty*. For a full description of this warranty, please see your local Goodman dealer or click on the consumer brochure.
At Goodman, we believe in American dependability. Units are designed, engineered and assembled in the U.S.A.
Product Features
• Electronic Expansion Valve (EEV) for cooling and heat pump applications.
• 7mm evaporator coil tube size
• Variable-speed ECM blower motor
• Compatible with Goodman and Amana brand smart thermostats
• Provides constant CFM over a wide range of static pressure conditions independent of duct system
• CFM indicator
• Thermostat provides adjustable low-CFM for efficient fan-only operation
• All-aluminum evaporator coil
• Fault recall of six most recent faults
• Improved humidity and comfort control
• AHRI certified; ETL listed
Cabinet Features
• Coil mounting track for quick repositioning
• UL 60335 2-40 Compliant
• Factory installed R-32 sensor designed for the lifespan of the coil
• Optimized for use with R-32 refrigerant
• Rigid SmartFrame™ cabinet
• Cabinet air leakage less than 2.0% at 1.0 inch H₂O when tested in accordance with ASHRAE standard 193
• Cabinet air leakage less than 1.4% at 0.5 inch H₂O when tested in accordance with ASHRAE standard 193
• Field Installed 3kW- 25kW electric heater kit available
• Horizontal or vertical configuration capabilities
• 21" depth for easier attic access
• DecaBDE-free thermoplastic drain pan with secondary drain connections
• Screw-less sides and back helps to reduce condensation when installed in humid locations
• Foil-faced insulation covers the internal casing to reduce cabinet condensation
• Galvanized, leather grain-embossed finish
• Glue-less cabinet insulation retention
• Tool-less filter access
